TKM38系列斜齒-準雙曲面齒輪減速機產品介紹

TKM38系列減速機是一款專為替代NMRV063蝸輪蝸桿減速機而設計的高性能傳動設備。它采用新一代的傘齒輪與斜齒輪組合傳動結構，在保持緊湊體積的同時，實現了高達95%的傳動效率與200N·m的峰值扭矩輸出，為各類工業機械提供了更高的效率、強勁且節能的動力升級方案。

核心性能參數

• 產品型號：TKM38B（2級傳動）、TKM38C（3級傳動）

• 適配電機功率：0.12KW - 45KW（覆蓋從小功率到中大功率的廣泛應用需求）

• 減速比范圍：7.5 - 300比（寬廣的速比選擇，精準匹配各類轉速需求）

• 傳動效率：95%（斜齒輪

• 與傘齒輪精密嚙合，遠超傳統蝸輪蝸桿結構）

• 峰值扭矩：200N·m（具備出色的承載能力，輕松應對高負載工況）

• 安裝兼容性：完美替代NMRV063，安裝尺寸完全兼容，無需改動機械結構即可直接升級。

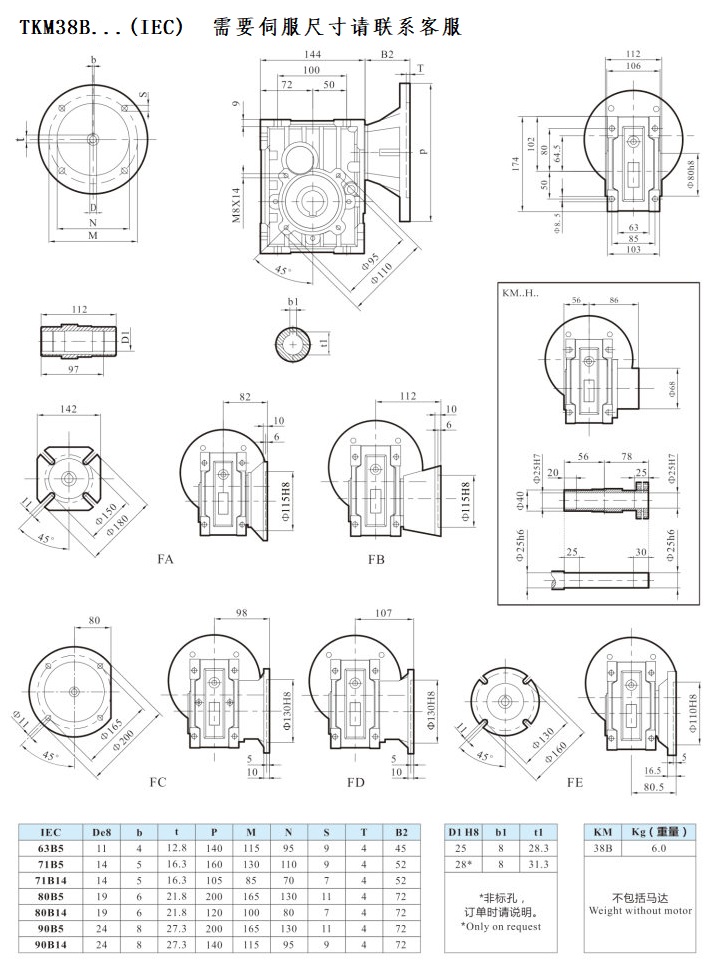

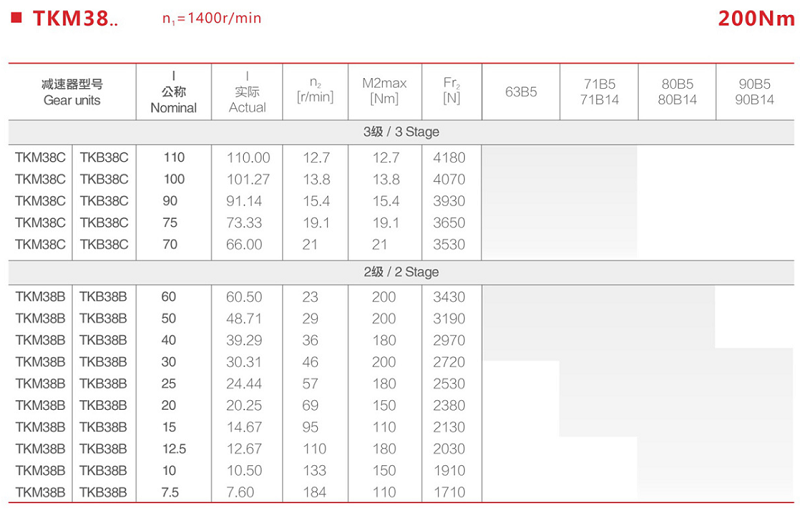

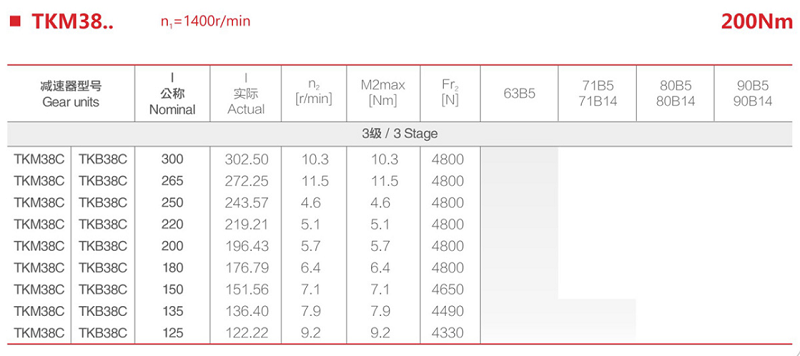

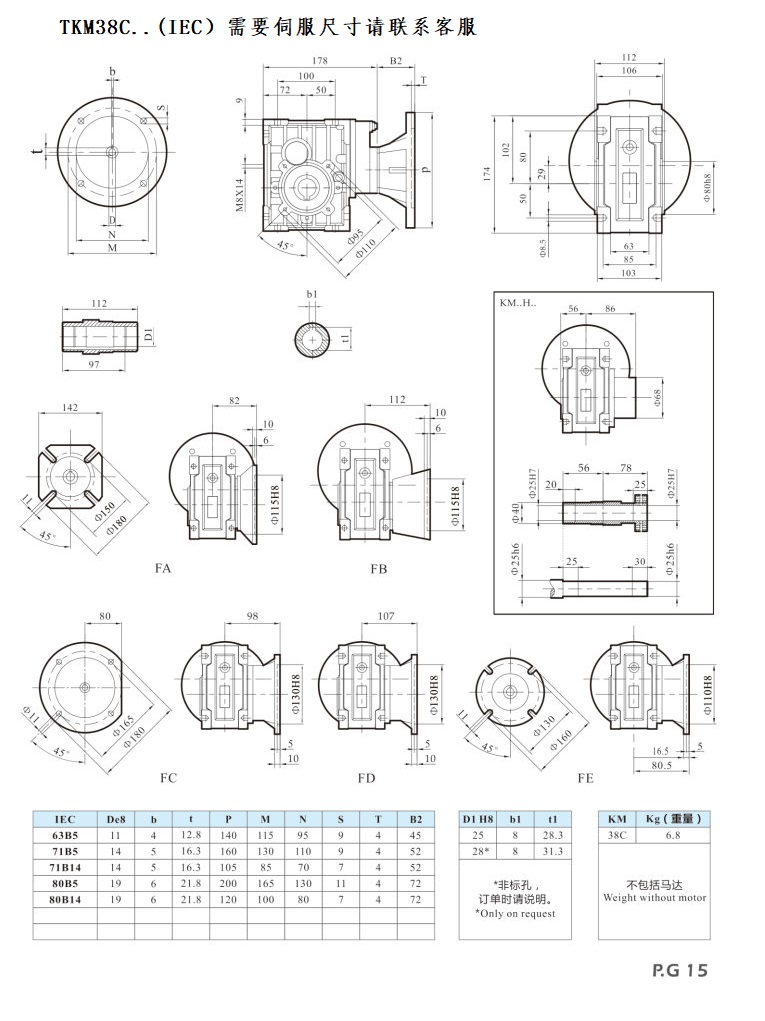

下面是TKM38B與TKM38C減速機的參數表

永傳電機TKM38B減速機型號：TKM38B-30-Y0.12KW-4P,TKM38B-40-Y0.18KW-4P,TKM38B-30-Y0.25KW-4P,TKM38B-15-Y0.37KW-4P,TKM38B-7.5-Y0.55KW-4P,TKM38B-7.5-Y0.75KW-4P,TKM38B-7.5-Y1.1KW-4P,TKM38B-7.5-Y1.5KW-4P,TKM38B-40-Y0.12KW-4P,TKM38B-50-Y0.18KW-4P,TKM38B-40-Y0.25KW-4P,TKM38B-20-Y0.37KW-4P,TKM38B-10-Y0.55KW-4P,TKM38B-10-Y0.75KW-4P,TKM38B-10-Y1.1KW-4P,TKM38B-10-Y1.5KW-4P,TKM38B-50-Y0.12KW-4P,TKM38B-60-Y0.18KW-4P,TKM38B-50-Y0.25KW-4P,TKM38B-25-Y0.37KW-4P,TKM38B-12.5-Y0.55KW-4P,TKM38B-12.5-Y0.75KW-4P,TKM38B-12.5-Y1.1KW-4P,TKM38B-12.5-Y1.5KW-4P,TKM38B-60-Y0.12KW-4P,TKM38B-60-Y0.25KW-4P,TKM38B-30-Y0.37KW-4P,TKM38B-15-Y0.55KW-4P,TKM38B-15-Y0.75KW-4P,TKM38B-15-Y1.1KW-4P,TKM38B-15-Y1.5KW-4P,TKM38B-40-Y0.37KW-4P,TKM38B-20-Y0.55KW-4P,TKM38B-20-Y0.75KW-4P,TKM38B-20-Y1.1KW-4P,TKM38B-20-Y1.5KW-4P,TKM38B-50-Y0.37KW-4P,TKM38B-25-Y0.55KW-4P,TKM38B-25-Y0.75KW-4P,TKM38B-25-Y1.1KW-4P,TKM38B-25-Y1.5KW-4P,TKM38B-60-Y0.37KW-4P,TKM38B-30-Y0.55KW-4P,TKM38B-30-Y0.75KW-4P,TKM38B-30-Y1.1KW-4P,TKM38B-40-Y0.55KW-4P,TKM38B-40-Y0.75KW-4P,TKM38B-50-Y0.55KW-4P,TKM38B-50-Y0.75KW-4P,TKM38B-60-Y0.55KW-4P

• 永傳電機TKM38C減速機型號：TKM38C-50-Y0.12KW-4P,TKM38C-50-Y0.18KW-4P,TKM38C-50-Y0.25KW-4P,TKM38C-50-Y0.37KW-4P,TKM38C-60-Y0.12KW-4P,TKM38C-60-Y0.18KW-4P,TKM38C-60-Y0.25KW-4P,TKM38C-60-Y0.37KW-4P,TKM38C-75-Y0.12KW-4P,TKM38C-75-Y0.18KW-4P,TKM38C-75-Y0.25KW-4P,TKM38C-100-Y0.12KW-4P,TKM38C-100-Y0.18KW-4P,TKM38C-100-Y0.25KW-4P,TKM38C-125-Y0.12KW-4P,TKM38C-125-Y0.18KW-4P,TKM38C-125-Y0.25KW-4P,TKM38C-150-Y0.12KW-4P,TKM38C-150-Y0.18KW-4P,TKM38C-200-Y0.12KW-4P,TKM38C-200-Y0.18KW-4P,TKM38C-250-Y0.12KW-4P,TKM38C-300-Y0.12KW-4P

•


產品核心優勢

 適用領域

TKM38系列減速機憑借其體積小、扭矩大、效率高的特點，廣泛應用于食品飲料加工機械、環保設備、包裝機械、紡織印染設備、自動化輸送線以及各類輕工機械設備中，是替代傳統蝸輪蝸桿減速機、提升整機性能的理想選擇。
